How Do Dual - Speed Resolvers Achieve High - Precision Angular Measurements?

In today’s highly advanced industries, the need for precise measurement systems is more critical than ever. Whether it's in aerospace, robotics, or industrial machinery, accurate angular position feedback is crucial for the seamless operation of high-performance systems. Dual-speed resolvers, an innovative solution from Shanghai Yingshuang (Windouble) Electric Machinery Technology Co., Ltd., offer exceptional performance in this area, providing ultra-precise angular measurements that play a significant role in many technological advancements. With years of expertise in the development and manufacture of resolvers, our company offers top-tier products designed to meet the demands of industries requiring precision and reliability.

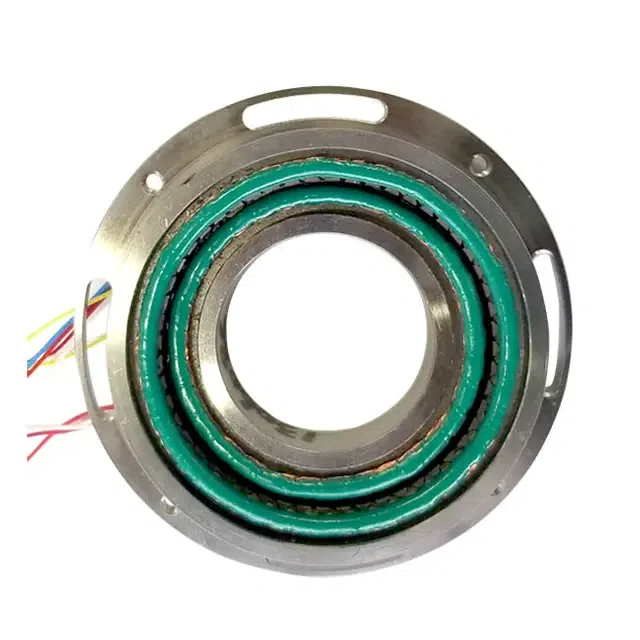

What is a Dual-Speed Resolver?

A dual-speed resolver is an advanced device used for high-precision angular measurements. It combines two different resolver designs— a single-pole resolver for coarse measurements and a multipole resolver for fine measurements—into a single unit. This combination allows the dual-speed resolver to offer both a broad range of measurements and ultra-fine resolution. The coarse resolver takes care of the larger angle movements, while the fine resolver handles the smaller, more precise adjustments. This dual design ensures that high-precision measurements can be achieved without compromising the speed or efficiency of the system.

Resolvers are used in systems that need to track rotational angles, such as motors, turbines, robotic arms, and many others. The innovation of a dual-speed resolver lies in its ability to seamlessly integrate both coarse and fine measurements, which results in a highly accurate, reliable, and continuous feedback loop. This system significantly reduces measurement errors and enhances the performance of the machinery where it’s employed.

How Do Dual-Speed Resolvers Achieve High-Precision Angular Measurements?

The dual-speed resolver's ability to provide high-precision angular measurements is primarily due to the synergy between the coarse and fine resolvers. The coarse resolver (single-pole) is responsible for providing broad angular feedback, allowing the system to track large rotations with ease. The fine resolver (multipole) then takes over to refine the measurements for small angular changes, offering precision down to the arcsecond level.

These two resolver types work together by generating two sets of signals—one for the coarse angle and another for the fine angle. The system then processes these signals and combines them to provide a complete, highly accurate reading of the angular position. This dual signal processing system ensures that the resolution remains high even during fast rotations, which is often a limitation in traditional resolver designs.

By merging the benefits of both coarse and fine resolvers, dual-speed resolvers offer a highly reliable, precise, and cost-effective solution to track angular movements in real-time. This dual approach also allows for smoother operation, as any inaccuracies or noise generated by one resolver can be corrected or compensated for by the other. This provides an additional layer of robustness, ensuring stable operation even in environments with high vibrations or electromagnetic interference, which is particularly important in aerospace and industrial applications.

Another key factor is the high resolution achieved by the combination of coarse and fine resolvers. The coarse resolver offers reliable feedback for large-angle measurements, but it’s the fine resolver that brings the precision needed for tasks requiring extremely fine control. For instance, a robotics system might use the coarse resolver to track the position of a robotic arm’s base, while the fine resolver tracks minute adjustments in the hand or tool of the arm for delicate tasks.

Advantages of Dual-Speed Resolvers

One of the primary benefits of dual-speed resolvers is the precision they offer. The combination of coarse and fine resolver signals allows for measurements that span from the arcminute (1/60 of a degree) to the arcsecond level (1/3600 of a degree). This range of precision is essential in industries where minute angular shifts can have significant effects on overall performance. Whether for aerospace navigation, industrial motor control, or robotics, dual-speed resolvers help ensure that every movement is as accurate as possible.

Moreover, the dual-speed resolver offers reliability in angular position detection. The coarse resolver helps track large movements, while the fine resolver ensures that smaller, more subtle changes are captured with the utmost precision. This two-pronged approach significantly reduces the chance of errors, providing more dependable measurements that can be trusted even in high-stakes applications.

In many instances, the dual-speed resolver’s ability to operate in environments where high accuracy is needed is invaluable. For example, in aerospace, the precision of dual-speed resolvers ensures that guidance systems in aircraft and spacecraft perform optimally, tracking rotational angles to guide flight paths and adjust positions. Similarly, in robotics, dual-speed resolvers provide precise feedback to control movements, enabling robots to perform tasks that require delicate maneuvers, such as assembling tiny components or performing surgical procedures.

Additionally, dual-speed resolvers offer great flexibility. Their dual-functionality allows them to be used in a wide range of industries and applications where varying degrees of precision are required. Whether it's tracking a rotating motor in an industrial environment or controlling a robotic arm in a cleanroom, dual-speed resolvers can meet the demands of various industries, providing highly reliable and accurate angular feedback.

Applications of Dual-Speed Resolvers

Dual-speed resolvers are ideal for applications that demand high-precision feedback for angular positions. One of the key sectors benefiting from these resolvers is aerospace, where precision is critical for controlling flight mechanisms, navigation systems, and satellite tracking. In aerospace, the resolution provided by dual-speed resolvers is essential for accurate orientation and positioning of aircraft and spacecraft. Even slight angular errors can cause serious issues in such high-stakes operations, making the precision offered by dual-speed resolvers indispensable.

Dual-speed resolvers are also used extensively in robotics, particularly in the control of robotic arms, which require fine control to perform tasks like assembly or surgery. Robotics applications often require highly refined control over the movement of robotic joints, and dual-speed resolvers enable this by offering both coarse and fine position feedback in real-time. This allows robotic systems to perform delicate operations with extreme accuracy, ensuring that every movement is executed precisely as intended.

In industrial motor systems, where exact positioning can affect performance and safety, dual-speed resolvers ensure that motors function accurately and efficiently, leading to increased productivity and reduced downtime. Motors in large industrial machines, for example, rely on dual-speed resolvers to track angular movements of their shafts, ensuring that they operate smoothly and maintain high performance.

Another key area of application is in the military and defense industries, where accurate navigation and tracking are essential for operations involving guided missiles, radar systems, and other sensitive equipment. The reliability and precision of dual-speed resolvers are indispensable in these highly demanding fields, where the smallest deviation in angle can lead to failure or catastrophic results. Dual-speed resolvers enable accurate feedback for navigation and positioning, which is essential for mission success.

Challenges in Dual-Speed Resolver Technology

While dual-speed resolvers provide numerous benefits, there are several challenges associated with integrating this technology into existing systems. One challenge is the complexity of the design and integration process. Because dual-speed resolvers combine two different types of resolvers into one unit, ensuring that they work together seamlessly can be difficult, especially in systems that are already optimized for other types of sensors.

Another challenge lies in the cost and design considerations for manufacturers. Dual-speed resolvers are sophisticated devices, and their implementation can require substantial investment in both development and manufacturing. Companies must weigh these costs against the benefits of improved precision, particularly for industries where budget constraints are a concern. However, when considering the long-term benefits of reduced errors, increased performance, and greater reliability, many companies find that the investment is well worth it.

For manufacturers integrating dual-speed resolvers into their systems, it is also important to consider factors such as system calibration and maintenance. The added complexity of dual resolver systems can lead to more detailed calibration procedures and higher maintenance requirements. Ensuring that the system remains precise over time requires diligent monitoring and adjustments to maintain optimal performance.

Conclusion

Dual-speed resolvers represent a significant leap forward in high-precision angular measurement technology. The innovative combination of coarse and fine resolvers offers unparalleled precision, allowing for measurements as fine as an arcsecond, which is crucial in industries that demand accuracy and reliability. Shanghai Yingshuang (Windouble) Electric Machinery Technology Co., Ltd. is proud to be at the forefront of this technology, providing cutting-edge solutions that enhance performance across aerospace, robotics, industrial motor systems, and more. As the technology continues to evolve, we look forward to seeing even more widespread adoption of dual-speed resolvers and their applications in new and exciting fields.
