A precise motion control system depends on how accurately it can understand position and speed, and this is where a Variable Reluctance Resolver becomes essential. Many engineers and buyers first encounter this term when evaluating motor feedback solutions, yet its working principle and advantages are not always immediately clear. Unlike optical or digital sensors, this type of resolver relies on electromagnetic behavior to deliver stable and continuous position information. At Windoule Technology, extensive experience in resolver research, manufacturing, and application support allows us to transform this principle into reliable products used across automotive, industrial, and high-demand environments.
A variable reluctance resolver is an electromagnetic sensor designed to convert mechanical rotation into electrical signals. It works by applying an alternating current to an excitation winding and detecting how the magnetic field changes as the rotor moves.
The output signals are typically sinusoidal, forming sine and cosine waveforms that represent angular position. These signals are then processed by control systems to determine both position and speed.
Unlike discrete sensing devices, the resolver provides continuous feedback, which is critical for smooth and stable control.
In motor systems, precise position feedback is essential for efficient operation. A resolver continuously tracks rotor movement, allowing the system to adjust torque, speed, and direction in real time.
This continuous signal output enables high-quality control, particularly in applications where stability and smooth performance are required.
Resolvers are widely used because they combine reliability with consistent performance. They are less sensitive to environmental factors such as dust, oil, or temperature changes.
This makes them suitable for applications where other sensors might fail or require frequent maintenance.

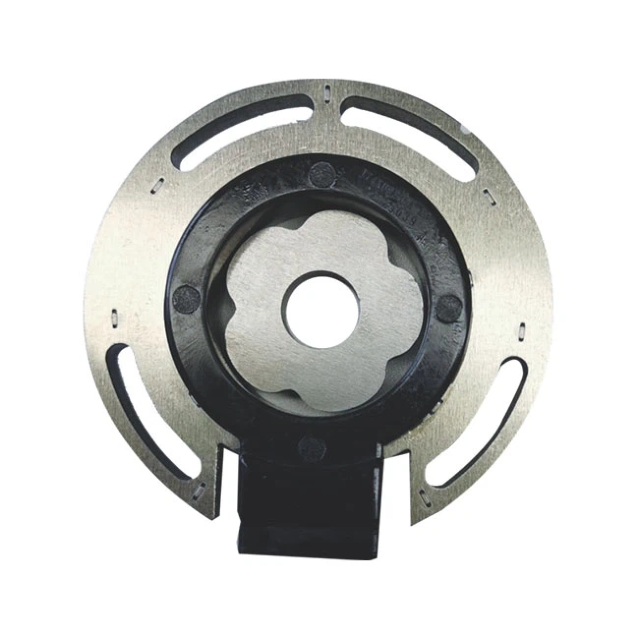

The stator is the stationary part of the resolver and contains the excitation and output windings. It is responsible for generating and detecting the magnetic field.
The design of the stator ensures that the magnetic field is stable and predictable, which is essential for accurate signal generation.
The rotor is a passive component made of magnetic material. It does not contain windings, which simplifies its structure and improves durability.
Its geometry is carefully designed to influence the magnetic path as it rotates, creating variations in the magnetic field.
The excitation winding produces an alternating magnetic field when energized. The output windings detect changes in this field caused by the rotor’s position.
This interaction produces the sine and cosine signals that represent angular position.
One of the key advantages of this design is its simplicity. With fewer active components, there are fewer points of failure, which enhances reliability and reduces maintenance requirements.
This is especially valuable in applications where long-term operation is critical.
Reluctance is a property that describes how easily a magnetic field can pass through a material. In a resolver, this property changes as the rotor moves.
The term “variable reluctance” reflects the fact that the magnetic path is continuously changing during rotation.
As the rotor rotates, its shape alters the alignment between magnetic paths. This changes the coupling between the excitation and output windings.
These variations are detected as changes in voltage, forming the resolver’s output signals.
The resolver produces two output signals that are offset by 90 degrees. These sine and cosine signals provide a complete representation of angular position.
By analyzing the relationship between these signals, the control system can determine the exact position of the rotor at any time.
Unlike digital sensors that provide discrete signals, a resolver produces continuous analog signals. This allows for smoother control and reduces abrupt changes in system behavior.
Brushless resolvers also use electromagnetic principles but typically involve more complex structures. They may include additional windings or components.
Variable reluctance resolvers have a simpler design, which often makes them more robust and easier to manufacture consistently.
Encoders use optical or magnetic methods to detect position. While they can offer very high resolution, they are more sensitive to environmental conditions.
Resolvers, on the other hand, maintain performance in environments where contamination or vibration is present.
In applications where reliability is more important than maximum resolution, VR resolvers are often preferred. Their ability to operate under challenging conditions makes them suitable for demanding systems.
Below is a comparison of common position feedback devices:
Sensor Type | Signal Principle | Typical Strength | Typical Limitation | Common Use Case |
Variable Reluctance Resolver | Electromagnetic | High durability, stable output | Requires signal processing | EV motors, industrial systems |
Brushless Resolver | Electromagnetic | Stable performance | More complex structure | Precision applications |
Encoder | Optical/magnetic | High resolution | Sensitive to environment | Controlled environments |
Electric vehicles require precise and reliable feedback to control motor performance. VR resolvers provide stable signals under varying temperatures and mechanical stress.
Industrial systems often operate continuously and under demanding conditions. The durability of VR resolvers makes them suitable for such environments.
In aerospace applications, reliability is critical. VR resolvers can maintain performance under extreme conditions, making them a trusted solution.
In energy systems, rail transportation, and heavy equipment, continuous operation and reliability are essential. VR resolvers provide dependable feedback in these applications.
Resolvers require an excitation signal defined by voltage and frequency. These parameters determine how the magnetic field is generated and how signals are produced.
The transformation ratio defines how the input signal is converted into output signals. It affects signal amplitude and system compatibility.
Accuracy determines how closely the output reflects the actual position. Phase shift affects signal timing. Insulation ensures safe operation, while durability reflects long-term performance.
In practical applications, signal stability is critical. A high-quality resolver maintains consistent output even in the presence of electrical noise or environmental disturbances.
Different applications require different pole configurations. Multipole resolvers provide more signal cycles and can enhance system responsiveness.
Proper mechanical integration ensures accurate operation. The resolver must align with the motor shaft and fit within available space.
Customization options such as wiring, lead length, and rotor dimensions allow the resolver to meet specific application requirements.
Engineering support ensures that the resolver integrates effectively into the system.
High manufacturing standards ensure consistent performance across units. This is essential for maintaining system reliability.
At Windoule Technology, strong technical expertise and advanced production capabilities ensure that each resolver meets strict quality standards.
A resolver must perform consistently over time. Reliable design reduces maintenance needs and improves overall system efficiency.
This is particularly important in applications where downtime can lead to significant operational costs.
A Variable Reluctance Resolver is more than a sensing device—it is a reliable solution for continuous position and speed feedback in demanding environments. Its simple structure, combined with strong resistance to environmental factors, makes it a preferred choice across industries. Windoule Technology continues to develop resolver products that transform this principle into real-world performance, helping customers achieve stable and efficient motion control. If your application requires dependable sensing and long-term reliability, contact us to explore how our solutions can support your system. When evaluated as a VR resolver solution, this technology offers a proven combination of durability, adaptability, and performance.
It is used to measure rotor position and speed in motor systems, providing continuous feedback for control.
It uses changes in magnetic reluctance caused by rotor movement to generate sine and cosine signals representing position.
Its electromagnetic design and simple structure allow it to operate reliably under temperature changes, vibration, and contamination.
Key considerations include pole configuration, mechanical compatibility, electrical parameters, and application requirements.
