How A Brushless VR Resolver Enhances Reliability And Anti-Interference in Electric Vehicle Drives

As electric vehicle (EV) architectures transition toward multi-motor configurations, demands on motor control units have intensified. Systems now feature oil-cooled environments and extreme rotational speeds approaching 30,000 RPM. These operational limits quickly outpace the capabilities of traditional position sensors.

Optical encoders and Hall-effect sensors face high failure rates in these volatile setups. They suffer from rapid signal degradation when exposed to severe electromagnetic interference, high temperatures, and automatic transmission fluid (ATF).

For reliable, millisecond-precision current delivery, the Brushless VR Resolver has become the definitive industry standard. This guide breaks down its core passive magnetic architecture and manufacturing excellence. You will learn how rigorous validation criteria ensure continuous operation in the harshest EV drive environments.

Key Takeaways

• Passive Reliability: Brushless VR resolvers operate without onboard electronic components, granting extreme resilience against EV high-voltage electromagnetic interference, vibration, and thermal cycling (-40°C to over 125°C).

• Absolute Positioning: Unlike incremental sensors, VR resolvers retain position data memory upon power loss, eliminating the need for recalibration or re-homing upon vehicle restart.

• Evaluation Mandates: Sourcing decisions must scrutinize manufacturing specifics—such as TIG welding over traditional soldering, and solid-rotor designs over laminated cores—to prevent high-speed delamination and connection failures.

• Integration Readiness: Best-in-class resolver deployments utilize Hardware-in-the-Loop (HIL) simulation to validate ECU responses against injected fault scenarios (open/short circuits) prior to mass production.

The Engineering Bottleneck in Modern EV Drive Systems

The Shift to Oil-Cooled and Multi-Motor Architectures

Automakers face a constant struggle between reducing vehicle weight and increasing power density. They solve this by pushing electric motors harder and integrating them directly into the transmission housing. High-performance models now utilize dual-motor, tri-motor, and even quad-motor layouts. This tight integration forces critical components into highly volatile environments. Sensors must now sit directly inside oil-cooled motors. They face direct, continuous immersion in automatic transmission fluid. Conventional protective housings cannot fit in these dense packages.

Vulnerabilities of Legacy Sensors

Legacy sensors simply cannot survive inside modern electric drives. Consider optical encoders first. They utilize delicate glass discs and rely on a perfectly clear light path. They fail quickly due to fluid contamination and mechanical fragility. A single microscopic drop of oil scatters their light signal instantly. Even extreme cold causes problems. A cold-soak scenario at -40°C creates internal condensation. This moisture effectively blinds the optical sensor upon morning startup.

Hall-effect sensors carry their own severe vulnerabilities. They rely heavily on active silicon chips. These chips suffer from major thermal drift when powertrain temperatures spike above 100°C. Furthermore, continuous heavy-load driving generates massive high-voltage electromagnetic interference (EMI). This intense EMI scrambles the weak internal voltage of a Hall chip. It forces the motor control unit to rely on complex, processing-heavy compensation algorithms to guess the true position.

The Business Impact

We must frame sensor failure correctly. It represents far more than a minor engineering glitch. A dropped position signal acts as a critical safety liability. When the controller loses the rotor angle, it shuts down current delivery instantly. This triggers sudden, dangerous vehicle stalls at highway speeds. It directly causes costly vehicle recalls and destroys brand trust. Manufacturers cannot risk their entire powertrain reputation on fragile active electronics.

How the Brushless VR Resolver Achieves Anti-Interference and Robustness

Transformerless, Passive Magnetic Architecture

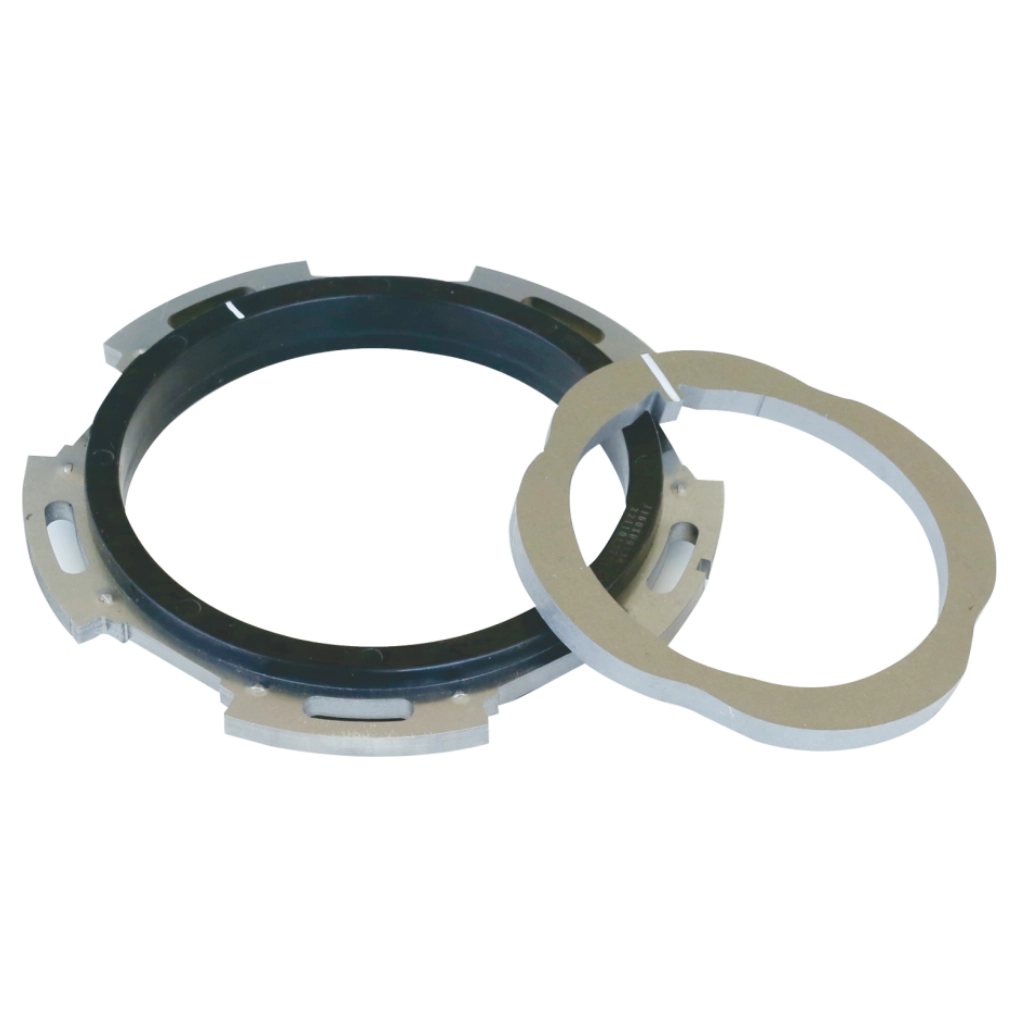

The Brushless VR Resolver removes active vulnerabilities entirely. It employs a transformerless, passive magnetic architecture. The design relies entirely on the variable reluctance principle. It utilizes a bare ferromagnetic rotor featuring specialized lobe profiles. Embedded permanent magnets are completely absent. The stator relies on rugged, non-overlapping tooth-coil windings.

As the rotor spins, the air gap constantly changes size. This changing gap alters how easily the magnetic flux travels. We call this phenomenon magnetic reluctance. This physical setup lacks internal electronics and mechanical brushes. It eliminates friction wear completely. The absence of silicon chips grants total immunity to the high-voltage EMI generated by the EV inverter.

Absolute Angle Detection

Absolute angle detection sets this technology apart fundamentally. The secondary coils pick up the changing magnetic reluctance. They output modulated sine and cosine voltage fluctuations. The control unit compares these two signals to calculate the exact absolute angle instantly.

Retaining absolute positioning upon power failure serves as a mandatory safety requirement for modern EV traction motors. Imagine a system reboot at high speed. The motor controller needs exact position data instantly to resume torque delivery. Passive magnetic sensors retain absolute positioning naturally without power. They require zero recalibration and zero homing sequences.

Extreme Environment Capabilities

Verified operational thresholds prove the exceptional durability of passive designs. They maintain sustained functionality deep inside highly pressurized ATF oil baths. They handle extreme thermal ranges gracefully. You can operate them safely from -40°C up to 150°C. Active silicon components would melt or short-circuit long before reaching these environmental extremes.

Procurement Criteria: Evaluating Manufacturing Tolerances and Quality

Winding Precision and Stator Concentricity

You cannot ensure sensor survival just by reading basic data sheets. True reliability stems directly from manufacturing excellence. Uneven stator winding directly causes position accuracy degradation. Standard manual winding machines leave microscopic air gaps between the copper wires. These gaps distort the electrical output signals.

You must evaluate suppliers based on their winding technology. Advanced, automated nozzle-winding techniques solve the air gap problem. They achieve significantly tighter copper packing around the stator teeth. This precision reduces error margins down to an impressive 15 arc-minutes or less.

Welding Resiliency (TIG vs. Soldering)

Severe powertrain vibrations act as a constant destructive force. Traditional tin soldering rarely survives continuous mechanical shock. Soldered joints suffer from fatigue cracking and "cold joint" separations over time.

You should exclusively recommend suppliers utilizing Tungsten Inert Gas (TIG) welding. The TIG process melts the copper wire ends directly. It forms a solid melted ball encapsulation over the connections. This prevents joint fractures entirely. It also enables rapid visual quality assurance on the factory assembly line.

Rotor Integrity for High RPMs

Standard EV motors now push beyond 30,000 RPM. These extreme speeds place massive centrifugal stress on rotating parts. Traditional laminated rotors bolt multiple thin steel layers together. They risk severe core delamination under these intense forces. The layers literally peel apart and destroy the sensor.

Engineers must highlight the shift toward solid rotor cores. Manufacturers machine these cores from single blocks of metal. They apply electrostatic powder-coated insulation layers afterward. This maintains absolute uniform thickness. It actively prevents assembly tolerance stacking during high-volume production.

Integration, Customization, and ECU Validation Protocols

Hardware-in-the-Loop (HIL) Fault Testing

Developing a robust motor control system demands rigorous early validation. You cannot wait for physical motor prototypes to test your safety protocols. Hardware-in-the-Loop (HIL) testing provides a vital safety net during the R&D phase.

Engineers utilize high-speed resolver simulators during these HIL setups. They replicate exact speed and position signals under extreme edge cases. Fault injection acts as a mandatory validation step. Engineers deliberately simulate short circuits and open circuits. They feed these errors into the motor control unit to test its response. The fail-safe software must detect the anomaly and limit torque gracefully.

Mechanical Customization for Platform Scalability

Mechanical customization ensures long-term platform scalability. Automakers constantly aim to consolidate their bill of materials across different vehicle lines. Mechanical flexibility allows one baseline sensor family to serve multiple powertrain configurations.

Engineers must carefully check several key specification variables during integration:

• Pole-Pair Multipliers: You must match the sensor's pole-pairs precisely to the traction motor’s specific configuration. This ensures perfectly synchronized electrical tracking.

• Wiring Exit Orientation: Accommodating tight packaging spaces requires careful planning. You must specify either axial or radial wiring exits based on the transmission housing constraints.

• Inner vs. Outer Rotor Variations: Platform scalability often necessitates both inner and outer rotor design options. Different drive unit layouts demand distinct mechanical form factors.

Head-to-Head: Brushless VR Resolvers vs. Alternative EV Sensors

Comparing Temperature Limits and Lifespan

Engineers frequently compare sensors during the initial architecture phase. Understanding direct performance contrasts helps justify the final component selection. When comparing technologies against Hall-effect sensors, temperature and lifespan dictate the winner.

A passive magnetic architecture maintains high accuracy in extreme heat. It suffers zero thermal drift. Conversely, Hall sensors require complex software compensation algorithms as temperatures rise. Their delicate silicon structures inherently degrade over thousands of thermal cycles.

Comparing Environmental Sealing

When comparing against optical encoders, environmental sealing separates the two options. Optical encoders require pristine operating conditions. They fail completely when exposed to dust, oil, and condensation. The rugged construction of a passive magnetic sensor makes it entirely immune to fluid degradation. It stands alone as the only viable choice for direct oil-cooled drive immersions.

Evaluating the Cost-to-Value Ratio

We must carefully look at the cost-to-value ratio for these components. Individual unit costs of advanced passive sensors often exceed basic Hall chips. However, evaluating the actual operational value reveals a vastly different story. Passive designs eliminate recalibration downtime entirely. They dramatically lower field warranty claims. They drastically simplify continuous operation across the vehicle's entire lifespan. The initial investment secures unparalleled reliability for the electric traction motor.

Conclusion

The brushless VR resolver acts as a mandatory safeguard for high-efficiency EV drives. It dominates multi-motor configurations operating in oil-cooled, high-vibration conditions. It provides a level of operational assurance that active silicon components simply cannot match.

Technical buyers must move far beyond baseline data sheets. You should actively audit supplier manufacturing processes. Look closely at TIG welding practices and automated winding uniformity. Always request extensive ATF immersion test data to ensure your components survive direct-cooled architectures.

We urge engineering teams to consult with application specialists early in the design cycle. Discuss custom pole-pair matching to fit your specific traction motor. Request comprehensive HIL simulation data to aggressively accelerate your drive system validation.

FAQ

Q: Why are brushless VR resolvers preferred over standard resolvers for EV applications?

A: They eliminate the need for an internal rotary transformer, including mechanical brushes and slip rings. This dramatically reduces the physical footprint and manufacturing complexity. It removes friction-based wear entirely while maximizing high-speed RPM limits. This makes them perfect for modern, high-speed electric traction motors.

Q: Can a VR resolver operate while completely submerged in ATF oil?

A: Yes. Their passive magnetic construction and specialized electrostatic insulation allow them to operate continuously in oil-cooled motor applications. They function flawlessly in highly pressurized automatic transmission fluid without experiencing signal loss, short circuits, or fluid degradation over time.

Q: How does a brushless VR resolver handle power loss differently than an encoder?

A: It functions natively as an absolute position sensor. Upon startup or after an unexpected power loss, it immediately detects the exact rotor angle via magnetic reluctance. It requires no "homing" sequence or recalibration, ensuring immediate and safe motor control resumption.
