The Ultimate Guide To Motor Rotor Position Sensors for Achieving ±10 Arc-Minute Precision

Achieving ±10 arc-minute accuracy in closed-loop motor control demands more than simply purchasing a high-resolution sensor. You must actively manage the total error budget across mechanical, electrical, and environmental variables. Every micron of misalignment or degree of thermal shift directly degrades your control loop performance. For advanced applications—ranging from precision robotics and CNC machining to critical aerospace actuators—the Motor Rotor Position Sensor represents the ultimate bottleneck. It defines your maximum system efficiency, limits torque ripple, and dictates final positioning accuracy. This guide deliberately bypasses basic top-of-funnel definitions. Instead, we provide a rigorous, evaluation-stage framework tailored for engineers and system architects. You will learn how to select the precise sensor architecture for your operating environment. We will also show you how to mitigate physical integration risks and confidently validate complex vendor claims before finalizing your hardware design.

Key Takeaways

• Resolution ≠ Accuracy: A 19-bit sensor does not guarantee ±10 arc-minute precision if mounting eccentricity and thermal drift are unaccounted for.

• Architecture Trade-offs: Optical, magnetic, inductive, and resolver-based sensors each possess strict operational boundaries; selection must be driven by environmental realities, not just spec-sheet optimums.

• Integration Defines Success: Up to 70% of precision errors originate from mechanical misalignment and latency, requiring robust algorithmic compensation (e.g., Look-Up Tables) alongside the physical hardware.

The Engineering Case for ±10 Arc-Minute Precision

Business Problem Framing

You cannot blindly apply strict ±10 arc-minute constraints to every project. We must define exactly when and why this precision level becomes strictly necessary. Direct-drive motors require exceptional accuracy to eliminate torque ripple completely. If your motor experiences torque ripple, the resulting physical jitter destroys the surface finish in CNC machining. In semiconductor manufacturing, poor positioning prevents silicon wafers from aligning properly during photolithography. When building surgical robots, precision errors translate directly to unacceptable patient risks. You must anchor your precision requirements to these specific operational outcomes rather than arbitrary engineering goals.

The "Error Budget" Reality

Engineers often confuse sensor-level accuracy under ideal conditions with system-level accuracy in the real world. A datasheet might promise ±5 arc-minutes of error. However, this specification assumes a perfect 25°C laboratory environment and mathematically flawless shaft alignment. The real-world error budget includes multiple overlapping variables. You must account for bearing runout, shaft deflection under load, and thermal expansion of the mounting bracket. You must also factor in electrical noise and analog-to-digital quantization errors. System-level accuracy is the sum of all these imperfections. Your sensor budget must leave room for inevitable mechanical degradation over time.

Success Criteria

Establishing a baseline for a successful implementation requires looking beyond a single static measurement. A truly optimized motor feedback loop demonstrates predictable data latency. Your controller must receive the position data precisely when expected. Furthermore, the system must deliver repeatable accuracy across its entire thermal operating range. A sensor performing flawlessly at startup but drifting at 90°C represents a failed implementation. Finally, you need long-term mechanical stability. The chosen architecture must maintain its calibrated baseline after thousands of hours of high-vibration operation.

Comparing Solution Architectures: Optical, Magnetic, Inductive, and Resolvers

Selecting the right architecture dictates the success of your precision goals. The chart below summarizes the fundamental trade-offs between competing sensing technologies.

Optical Encoders

Optical technology remains the gold standard for clean environments. These sensors read tiny physical gratings etched onto a glass or metal disc. They offer unparalleled absolute baseline accuracy and incredibly high resolution out of the box. If you design coordinate measuring machines (CMMs) or laboratory equipment, optical is usually your first choice. However, optical architectures face severe limitations in industrial settings. They are highly susceptible to particulate contamination. A single drop of oil or heavy condensation on the disc scatters the light beam, causing immediate signal failure. High-vibration environments can also shatter glass optical discs.

Magnetic Sensors (Hall-Effect, AMR, GMR)

Magnetic sensors dominate budget-conscious and compact engineering designs. They utilize Hall-Effect, Anisotropic Magnetoresistance (AMR), or Giant Magnetoresistance (GMR) principles to track a rotating dipole magnet. They deliver robust performance against dirt, oil, and moisture. Nevertheless, magnetic architectures possess notable limitations. They are highly vulnerable to external stray magnetic fields generated by the motor coils. Furthermore, the physics of magnetic flux inherently produces non-linearities. You must apply heavy algorithmic compensation in your controller to force a standard magnetic sensor into the ±10 arc-minute threshold.

Inductive Sensors

Inductive architectures excel in modern applications requiring ultra-thin form factors. These sensors use PCB-based coils to generate and detect eddy currents on a patterned metallic rotor. Because they do not rely on magnetic dipoles, they offer total insensitivity to external stray magnetic fields. They also provide high Electromagnetic Interference (EMI) immunity. Your primary limitation involves spatial tolerances. Inductive sensors are highly sensitive to target-to-sensor gap variations. Any axial play (Z-axis movement) in the motor shaft directly distorts the inductive coupling, ruining your angular accuracy.

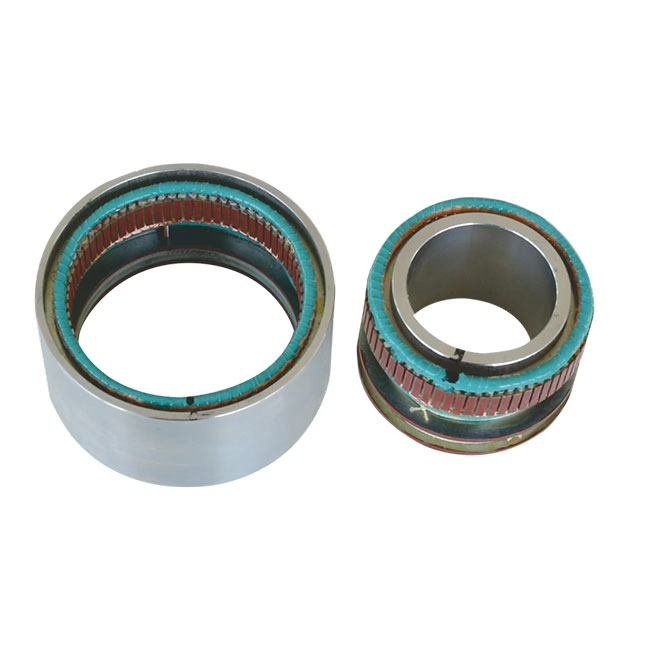

Resolvers

When extreme durability dictates your design, you must explore traditional analog alternatives. Heavy industry and aerospace applications routinely deploy a Motor Rotor Position Sensor based on resolver technology. Resolvers function essentially as rotary electrical transformers. They lack fragile internal electronics, allowing them to survive extreme temperatures, brutal physical shock, and intense radiation. The downside centers on integration complexity. Resolvers remain heavy and bulky compared to digital chips. They also require a complex external Resolver-to-Digital Converter (RDC) to translate their analog sine/cosine waves into actionable digital position data.

Core Evaluation Dimensions for Decision Makers

Accuracy vs. Resolution Validation

Engineers consistently make the mistake of equating resolution with accuracy. You must carefully interrogate vendor datasheets. A 19-bit sensor divides a circle into over 524,000 discrete steps. However, those steps mean nothing if they do not map perfectly to reality. Selecting a high-resolution component is entirely insufficient without analyzing the Integral Non-Linearity (INL) specification. INL measures how far the sensor's reported position deviates from the true physical angle. A sensor can offer massive resolution but still suffer from a 30 arc-minute INL error due to internal silicon flaws. Always prioritize low INL over high bit-count.

Environmental Degradation & Thermal Drift

You cannot evaluate a sensor at a single ambient temperature. Temperature fluctuations physically alter the sensor hardware. Magnets lose field strength as they heat up. PCBs expand, changing the relative distance between sensing elements. You must evaluate how these thermal dynamics impact your overall accuracy. Investigate whether the chosen architecture relies on integrated temperature compensation algorithms. The best modern ICs feature secondary onboard temperature sensors. These internal sensors dynamically adjust the analog front-end gain to cancel out thermal drift in real time.

Latency, Bandwidth, and Loop Rates

High static accuracy proves useless if your data arrives too late. You must match the sensor's data update rate strictly to your system's control loop frequency. If you run a fast 20 kHz servo loop, you need instantaneous position feedback. Signal latency causes dangerous phase lag at high RPMs. If the sensor requires 100 microseconds to process and transmit its angle, the motor shaft has already moved past that position. This lag creates artificial position errors, forcing the controller to inject incorrect compensation currents, ultimately causing motor instability.

Compliance and Functional Safety

Safety-critical environments demand stringent verification requirements. You cannot simply select an industrial sensor for an automotive steer-by-wire application. Evaluate the component’s SIL (Safety Integrity Level) or ASIL (Automotive Safety Integrity Level) ratings. Ensure strict RoHS compliance for global deployment. Furthermore, assess the redundancy capabilities of the absolute position feedback. Many ASIL-D certified sensors feature dual, fully isolated silicon dies inside a single package. If one die fails catastrophically, the secondary die assumes control, allowing the motor to achieve a safe state without losing precision.

Implementation Realities, Calibration, and Integration Risks

The Eccentricity Penalty

Mechanical mounting tolerances act as the primary killer of rotational precision. We call this the eccentricity penalty. Even a microscopic 50-micron misalignment between the sensor center and the true shaft center destroys your ±10 arc-minute target. As the shaft rotates, this off-center mounting forces the sensor target to wobble. This physical wobble generates a massive once-per-revolution sinusoidal error. No amount of electronic resolution can magically fix this physical reality. You must specify strict machining tolerances for your motor end-bells and bearing housings to minimize this geometric disaster.

Algorithmic Compensation (Expertise & Resources)

Because perfect mechanical alignment remains impossible, you must rely on advanced software correction. Utilizing Look-Up Tables (LUTs) is an absolute necessity for ultra-precise systems. During end-of-line manufacturing, you measure the assembled motor against an external master encoder. You record the repeatable error at every degree of rotation. Your motor controller then subtracts these mapped errors in real-time. Additionally, you must implement harmonic mitigation algorithms. These algorithms actively calibrate out repeatable magnetic flux distortions and mechanical runout, artificially forcing the physical hardware to perform at a ±10 arc-minute level.

Signal Conditioning and EMI Shielding

Routing low-voltage sensor signals through electrically noisy motor housings invites disaster. Motor phase cables carry high-frequency PWM switching currents. These currents easily couple into unshielded sensor wires, destroying the delicate position data. You must utilize strict differential signaling protocols. Avoid raw analog signals or single-ended TTL over long distances. Instead, implement RS-422, BiSS-C, or SSI communication. Differential signaling inherently cancels out common-mode electrical noise. Furthermore, you must separate signal wires from power lines physically and employ high-quality braided shields grounded properly at the controller end.

Supply Chain & Longevity

Brilliant engineering designs fail if you cannot actually procure the components. You must factor in component lifecycle and general supply chain health. Specialized high-precision sensors often suffer from prolonged lead times. Evaluate the vendor’s track record for delivering consistent silicon batches or optical discs at scale. Ask about their End of Life (EOL) policies. If a vendor discontinues your specific sensor IC in three years, you face a costly, time-consuming redesign of both your motor housing and your control firmware. Always secure long-term availability guarantees before finalizing your design.

Shortlisting Logic and Next-Step Actions

The Decision Matrix

To eliminate analysis paralysis, engineers should follow a strict, step-by-step logic filter when evaluating options:

1. Define the absolute environmental constraints: Quantify your maximum operating temperature, expected physical shock levels, and ambient EMI conditions. Eliminate architectures that fail these baseline tests immediately.

2. Define the mechanical envelope: Determine your spatial limits. Decide if the motor requires a through-hole shaft design, off-axis mounting, or an end-of-shaft configuration.

3. Calculate speed vs. accuracy requirements: Cross-reference your maximum electrical RPM against your hard accuracy requirement to establish your maximum acceptable latency budget.

4. Filter by supported communication protocols: Ensure the sensor outputs data natively in a protocol your drive controller supports (e.g., SPI for embedded boards, ABZ for legacy drives, or BiSS-C for high-speed absolute systems).

Vendor Evaluation

Never take marketing claims at face value. Demand rigorous proof from suppliers before initiating procurement. Ask for raw INL test data across the full operating temperature range, not just room temperature sweeps. Request comprehensive mechanical mounting guides. Vendors producing high-end sensors understand that mechanical integration dictates success; they should provide detailed spatial tolerance charts. Finally, ask for proven reference designs. Reviewing how a vendor integrates their own chip into a PCB provides critical insight into necessary bypass capacitors and grounding strategies.

Prototyping Strategy

Virtual simulations only take your design so far. Engineering teams must mandate the use of physical evaluation kits (EVMs) early in the design cycle. You need to test the manufacturer's claims against your specific motor’s magnetic field. A sensor might perform perfectly on a test bench but fail completely once exposed to the intense stray fields of your custom rotor. Prototyping allows you to measure actual physical runout and begin writing your Look-Up Table (LUT) calibration algorithms months before you finalize the mechanical housing.

Conclusion

Achieving reliable ±10 arc-minute precision represents a complex systems-engineering challenge. It strictly demands tight alignment between your mechanical machining tolerances, your chosen sensor architecture, and your controller's compensation algorithms. You cannot isolate one variable without compromising the others.

We strongly recommend avoiding familiar legacy technologies just because they feel safe. Evaluate modern inductive and advanced magnetic options if you face tight spatial constraints. Conversely, you should rely on high-end optical components or rugged resolvers where environmental physics dictate extreme performance needs.

Your immediate next step is to test these concepts in reality. Download a vendor-specific sizing calculator to verify your mechanical fit. Request an evaluation board today to capture raw latency data, or schedule a comprehensive technical review with a dedicated applications engineer to finalize your error budget.

FAQ

Q: Can a magnetic motor rotor position sensor legitimately achieve ±10 arc-minute precision?

A: Yes, but strictly if paired with rigorous end-of-line calibration, robust multi-point look-up tables (LUTs), and active compensation for temperature drift and mechanical runout. Without these software corrections, inherent non-linearities will prevent this level of precision.

Q: What is the most common cause of accuracy failure in newly integrated position sensors?

A: Mechanical eccentricity (off-center mounting) and shaft runout are the primary culprits. No amount of electronic resolution can inherently fix a physically wobbling sensor target without advanced software compensation.

Q: How does the choice of communication protocol affect sensor accuracy?

A: Protocols themselves don't change the physical measurement. However, high-speed digital absolute protocols like BiSS-C minimize latency and phase errors at high RPMs compared to analog or slower digital outputs. This ensures the controller receives data reflecting the real-time physical position accurately.
