Mission-critical motion control systems constantly push hardware to its absolute physical limits. In sectors like aerospace, heavy manufacturing, and automotive engineering, standard optical or magnetic encoders frequently fail. Extreme temperature fluctuations, severe mechanical shock, and relentless vibration quickly destroy delicate sensor components. You need a tougher solution.
Enter the resolver. This rugged, analog alternative relies entirely on proven rotary transformer principles. It inherently thrives in brutal environments where conventional digital sensors simply perish. Resolvers provide continuous absolute position data without fragile glass disks or sensitive onboard microelectronics.
This article provides a clear, engineering-focused breakdown of modern resolver topologies and mechanical form factors. We will explore internal electrical architectures and mechanical integration realities. You will learn how to evaluate these robust devices thoroughly. Ultimately, this guide helps system integrators specify the exact component matching their unique environmental and accuracy constraints.
A Brushless Resolver is the industry standard for minimizing maintenance by eliminating mechanical wear points between the rotor and stator.
Variable Reluctance Resolvers offer an extremely robust, passive-rotor design ideal for high-speed and space-constrained applications.
Dual Speed Resolvers provide the enhanced absolute accuracy required for precision CNC and aerospace targeting systems.
The choice between a Housed Resolver and a frameless unit dictates your mechanical integration workflow, impacting both assembly time and environmental sealing.
Engineers often default to optical encoders for standard motion control. However, demanding environments quickly expose the limitations of optical technology. You must evaluate a resolver when operational conditions exceed standard industrial thresholds.
Resolvers inherently withstand extreme temperature variations. Most standard units operate flawlessly from -55°C up to +200°C. Optical encoders typically fail at these extremes as their internal LED components degrade. Additionally, resolvers ignore heavy particulate contamination. Oil, dirt, and condensation blind optical sensors. Resolvers utilize magnetic coupling, so non-magnetic contaminants never disrupt their signal output.
Mean Time Between Failures (MTBF) calculations heavily favor resolvers in high-vibration settings. Optical encoders rely on fragile glass or plastic disks. Heavy shock shatters these disks instantly. Resolvers consist entirely of copper windings and laminated steel cores. They lack onboard electronics. This pure electro-mechanical design drastically improves reliability in stamping presses, mining equipment, and jet engines.
Resolvers generate absolute analog continuous signals. You receive a pure sine and cosine voltage output. This analog nature prevents position loss during sudden power cycles. When you restore power, the resolver immediately reports the correct absolute position. You never need a homing sequence to re-establish the motor shaft location.

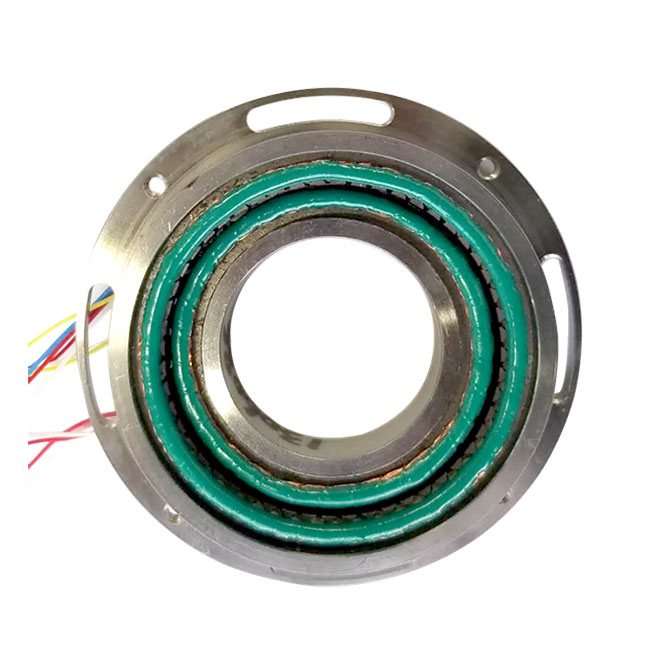

Selecting the right internal mechanism dictates the performance limit of your application. Manufacturers design different electrical architectures to solve specific motion control challenges. We classify them into three primary categories.
Early resolver designs used slip rings and brushes to transmit electrical signals. These physical contact points created friction and eventually wore out. The modern Brushless Resolver solves this problem completely.
Mechanism: This design uses a dedicated rotary transformer. It passes the high-frequency excitation signal to the spinning rotor magnetically. It requires zero physical contact. The rotor then induces the corresponding sine and cosine signals back into the stator windings.
Primary Advantage: It eliminates friction and contact wear. This drastic reduction in mechanical degradation increases operational lifespan exponentially. You gain exceptional reliability in continuous-duty applications where downtime is unacceptable.
Typical Use Case: Engineers heavily specify brushless models for standard industrial servo motors. You also find them driving electric vehicle (EV) traction motors and powering heavy-duty robotic joints.
When applications demand incredibly high speeds or extremely compact footprints, standard brushless designs become too bulky. The Variable Reluctance Resolver provides an elegant, simplified alternative.
Mechanism: This architecture features a completely passive toothed rotor. The rotor contains absolutely no copper windings. Instead, manufacturers place both the primary excitation windings and the secondary sine/cosine windings entirely on the stator. As the specially shaped metallic rotor spins, its lobed teeth vary the magnetic reluctance between the windings.
Primary Advantage: It offers a significantly thinner profile. The lack of rotor windings drastically simplifies manufacturing and balances the shaft perfectly. This allows the resolver to operate at exceptionally high RPMs. Many models exceed 100,000 RPM without risking structural degradation or rotor expansion.
Typical Use Case: They dominate high-speed spindle operations in CNC machining. They also fit perfectly into compact hybrid-electric drivetrains where axial space remains limited.
Standard resolvers provide absolute position within one mechanical revolution, but their angular accuracy rarely matches high-end optical encoders. The Dual Speed Resolver bridges this precision gap.
Mechanism: This complex unit incorporates two distinct sets of windings within a single assembly. It contains a 1-speed set for tracking absolute position. It also contains a multi-speed set (often 16, 32, or 64 poles) for generating high-resolution incremental data. The system combines both outputs electrically.
Primary Advantage: It dramatically reduces angular error. Multi-speed electrical gearing averages out minute mechanical manufacturing imperfections. It offers accuracy levels rivaling precision encoders while maintaining absolute resolver durability.
Typical Use Case: You see these deployed in military radar pedestals. Aerospace gimbal systems and highly precise machine tools rely heavily on dual-speed architectures for arc-second targeting.
Electrical architecture dictates signal performance. Mechanical form factor dictates your integration workflow. You must match the physical design to your manufacturing capabilities and environmental sealing needs.
A Housed Resolver looks very much like a traditional industrial encoder from the outside. It prioritizes ease of installation over size.
Design: The manufacturer supplies it fully enclosed in a rugged metal shell. It includes its own internal bearings and a dedicated rotating shaft.
Evaluation Criteria: This style is ideal for retrofits or drop-in replacements. If your environment requires specific external IP ratings (like IP67 for washdown), you need a housed unit. The enclosure protects the internal windings directly.
Trade-off: The enclosure adds significant bulk and weight. Furthermore, you must carefully align the resolver shaft to the motor shaft. Engineers typically use flexible couplings to prevent heavy radial or axial loads from destroying the internal resolver bearings.
Modern OEM motor designs prioritize weight reduction and compact dimensions. Frameless designs serve this exact need by stripping away redundant hardware.
Design: The manufacturer supplies the resolver as two completely separate components. You receive a bare rotor ring and a bare stator ring. You integrate them directly inside the host motor's main assembly.
Evaluation Criteria: This approach eliminates redundant bearings, external housings, and flexible couplings. It saves critical weight and reduces the overall axial length of the motor assembly. It is strictly preferred for embedded systems.
Trade-off: The installation burden shifts entirely to the integrator. You must maintain strict manufacturing tolerances. Precise rotor-to-stator concentricity is mandatory. If you mount the rotor off-center, you will introduce severe harmonic distortion into the positional signal.
Specifying a resolver requires balancing mechanical constraints against electrical performance targets. Follow this structured framework to narrow down your options quickly.
We outline the primary evaluation steps below:
Footprint vs. Assembly Capacity: Choose a frameless resolver if you need OEM weight-savings and have robust internal assembly processes. Choose a housed unit if you lack cleanroom assembly capabilities or precise concentricity tooling. Housed units forgive minor mounting misalignments.
RPM Requirements: Calculate your maximum motor velocity. Default to Variable Reluctance architectures for speeds exceeding standard mechanical bearing limits. Brushless models work well for standard speeds, but VR models handle extreme centrifugal forces effortlessly.
Accuracy vs. Hardware Budget: Specify a standard 1-speed brushless resolver for general motor commutation. It provides adequate precision for most applications. Escalate to a Dual Speed unit only when system error budgets strictly require arc-second precision. Dual-speed models require more complex controllers.
Signal Conversion: Verify compatibility with your drive's Resolver-to-Digital Converter (RDC). You must match the resolver's specific excitation frequency and transformation ratio to the RDC hardware specifications.
The chart below summarizes how these topologies stack up against common engineering metrics.
| Resolver Topology | Speed Limit (RPM) | Inherent Accuracy | Integration Complexity | Primary Strength |
|---|---|---|---|---|
| Standard Brushless | Medium to High | Standard (~10-20 arc-min) | Moderate | Excellent lifespan, zero friction |
| Variable Reluctance | Extremely High | Standard | Low (Passive Rotor) | Ultra-high RPM durability |
| Dual Speed | Medium | Exceptional (<1 arc-min) | High (Complex RDC) | Encoder-level precision |
Even the most rugged resolver will fail to deliver accurate positioning if you deploy it incorrectly. Engineers often underestimate the analog nuances of resolver signals. You must proactively manage electromagnetic interference and physical mounting tolerances.
Resolvers rely on a high-frequency AC excitation signal. The physical cable length and intrinsic impedance cause a phase shift between this incoming excitation signal and the returning sine/cosine outputs. If this shift becomes too large, the RDC fails to decode the position accurately. You must address this reality during commissioning. Always measure the phase shift with an oscilloscope. Require careful tuning at the RDC drive interface to compensate for long cable runs.
Resolvers output low-voltage analog signals. They normally generate between 2V and 7V RMS. These low-level signals travel near high-power motor leads carrying hundreds of amps of rapidly switching PWM current. This proximity creates massive Electro-Magnetic Interference (EMI) risks. We emphasize the absolute necessity of properly shielded, twisted-pair cabling. You must shield the excitation pair separately from the sine/cosine pairs. Always ground the shield properly at the drive end to protect the signal integrity.
Frameless units present distinct physical installation risks. The air-gap between the rotor and stator heavily dictates signal quality. We highlight the risk of signal degradation if air-gap tolerances are not strictly maintained. An eccentric rotor introduces amplitude variations into the sine and cosine signals. This translates directly into cyclical positional errors. You must use high-precision mounting jigs. Always verify shaft runout before securing the stator permanently.
Resolvers remain the undisputed choice for extreme environment motion control. By relying on robust electro-magnetic induction rather than fragile optics, they ensure your machinery keeps running through extreme heat, shock, and vibration.
We established that standard brushless designs handle routine industrial tasks, while variable reluctance models conquer high-speed applications. For absolute targeting precision, dual-speed variants rival delicate digital encoders. Always remember that the right resolver balances inherent ruggedness with the specific mechanical integration capabilities of your engineering team.
Audit your application thoroughly today. Map out your exact temperature ranges, maximum vibration levels, and peak RPM constraints. Finally, consult directly with your manufacturer's application engineers to lock in the optimal transformation ratios and mechanical form factors for your next build.
A: Yes. Single-speed resolvers provide true absolute position feedback within one full mechanical revolution. Because they output unique analog sine and cosine voltage ratios for every angle, they never lose their exact position upon power loss. They function identically to single-turn absolute encoders in this regard.
A: The primary difference lies in their output winding structure. A synchro utilizes a 3-phase stator output, generating signals separated by 120 degrees. A resolver utilizes a 2-phase stator output, generating pure sine and cosine signals separated by exactly 90 degrees. Modern digital controllers generally prefer 2-phase resolver signals.
A: A traditional brushless unit uses a rotary transformer to pass excitation signals into active rotor windings. A variable reluctance unit completely eliminates rotor windings. It relies on a passive, specially shaped metal rotor. It tracks position by measuring how the spinning rotor teeth alter the magnetic flux between fixed stator windings.
